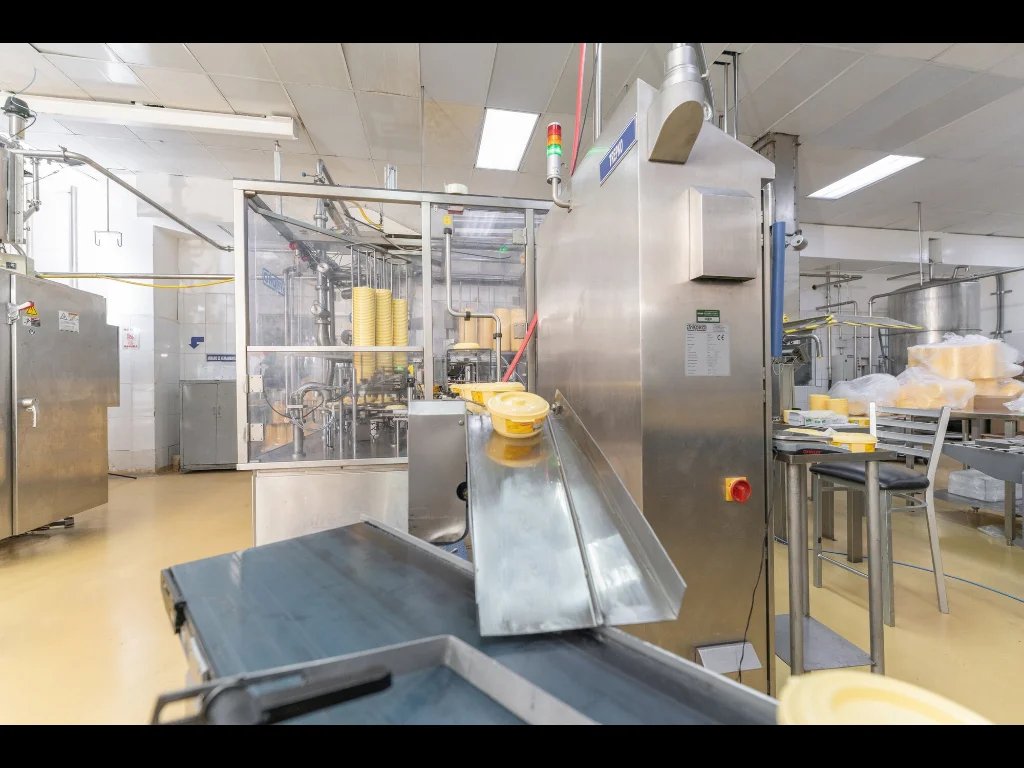

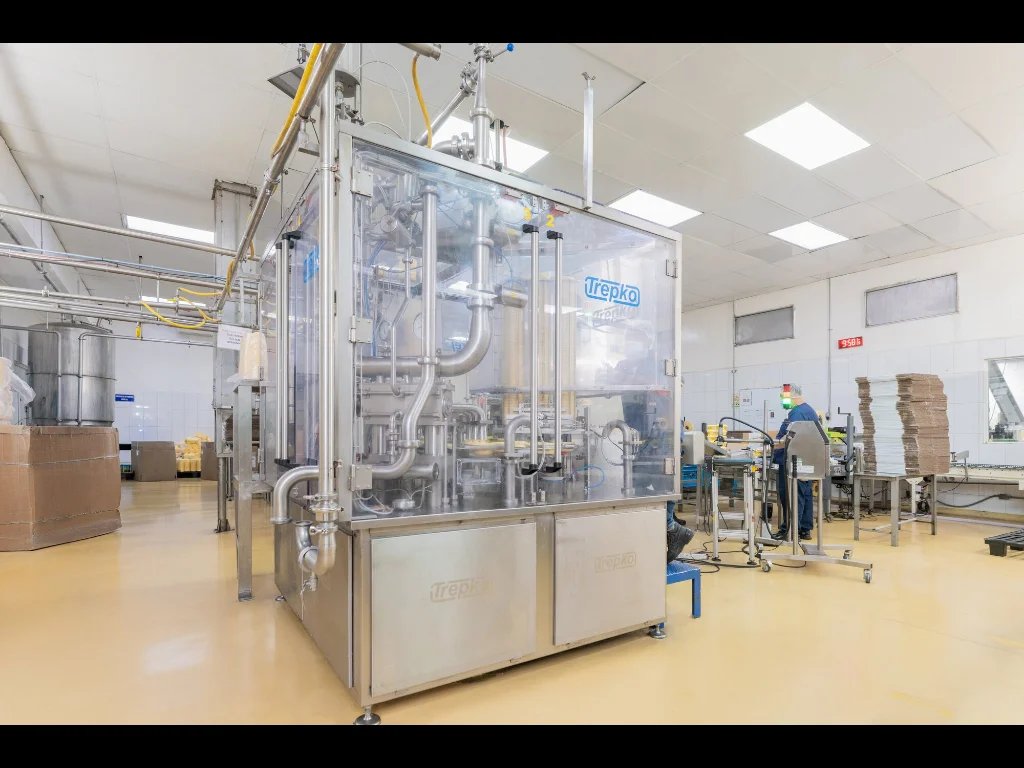

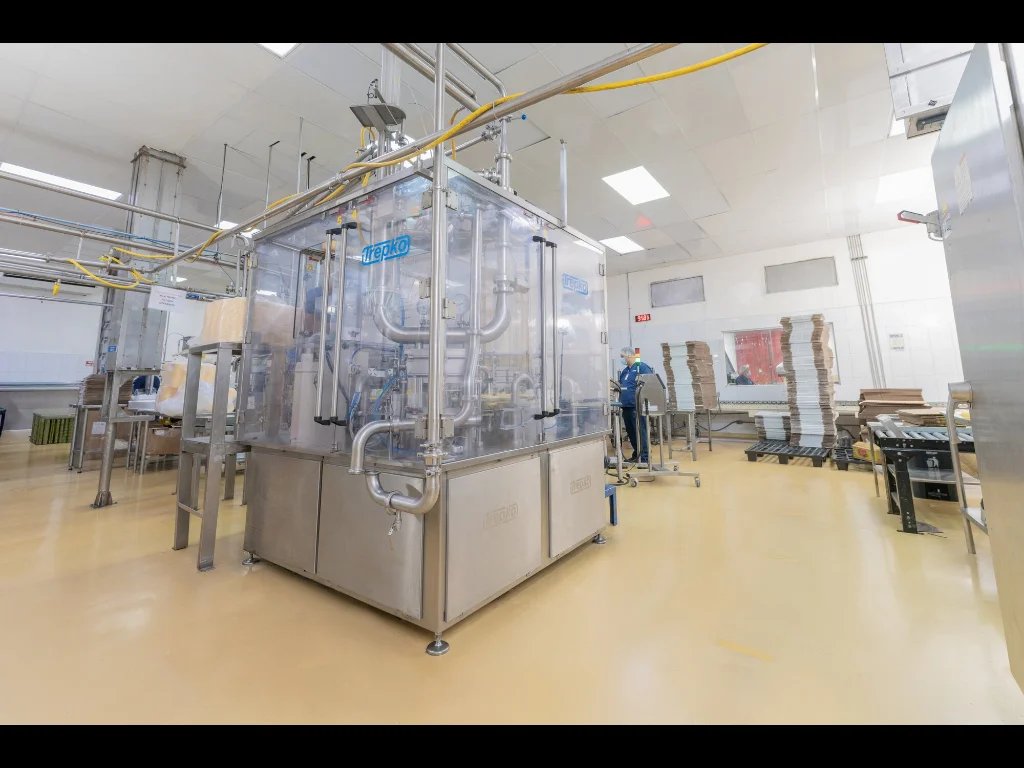

Used TREPKO type 233KSP Filling monoblock - Year 2015Technical
Specifications & Performance DataThe Trepko Type 233KSP filling
triblock/monoblock is industrial filling and capping equipment for
continuous gravimetric dosing of food, personal-care, household and
industrial liquid products. Manufactured in 2015, this machine
combines filling and plastic cap application within a compact
production system designed for accurate container
handling.Manufacturer: TrepkoModel: Type 233KSPProduction capacity: up
to 7,200 containers/hourOperating rate: 40 cycles/minFilling system:
gravimetric fillingFilling valves: 3Filling nozzles: 3Container format
range: 100 g to 500 g, adaptable through format changeoversDimensions:
3.3 m length, 2.0 m width, 3.3 m heightWeight: 2,500 kgAdvanced

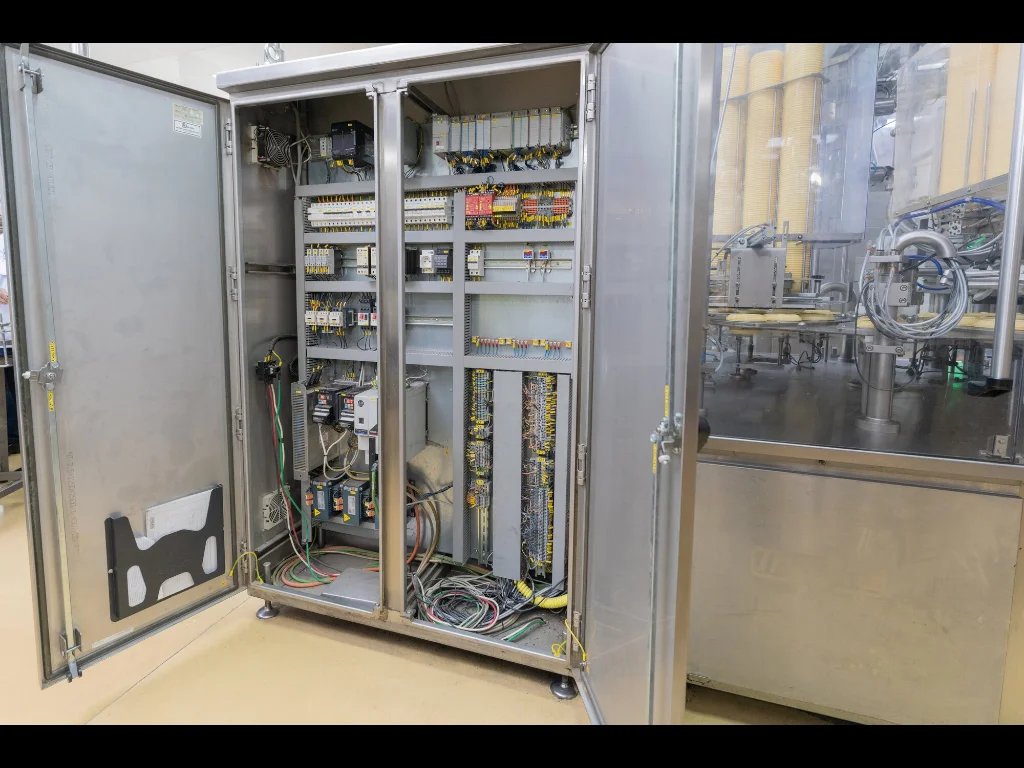

Automation & Control SystemsThe monoblock is equipped with an Allen
Bradley CompactLogix 1769-L30ERM PLC and a Pro-Face HMI, supporting
controlled operation of the filling and capping sequence. Its
gravimetric filling configuration is intended to support repeatable
dosing performance in continuous industrial packaging applications.
Format changeovers allow the machine to be adapted to different pack
presentations within the stated weight range.Electrical supply: 3 x
400 V AC + PE + NFrequency: 60 HzElectrical consumption: 9.5
kVACompressed-air requirement: 6 barApproximate compressed-air
consumption: 850 NL/minProduction Line Integration CapabilitiesThis
filling and capping monoblock can operate as a central process unit
within a dedicated industrial packaging cell. It is designed for PET,
PP and HDPE containers fitted with plastic snap-on or press-on caps.
With its compact footprint, the equipment can be integrated with
upstream container supply and downstream conveying, inspection,
labeling and secondary packaging machinery.The 100 g to 500 g format
capability supports product presentation changes through dedicated
change parts and format adjustments. This flexibility makes the
machine suitable for second hand production lines requiring filling
and capping equipment for multiple container presentations.Machine
Condition & Maintenance HistoryThe machine is currently in production
and functional. It has completed 15,000,000 cycles. Available
documentation includes manuals and P&ID documentation. The system is
supplied with 35 spare parts and is ready for installation.Operational
Performance & VersatilityThe Trepko gravimetric filler is intended for
accurate filling of products such as margarine, shortening, ketchup,
mayonnaise, peanut butter, liquid soap, liquid detergent, lotions,
liquid yogurt, juice and industrial lubricants. This broad application
scope supports food processing, beverage production, personal-care
filling and industrial product packaging.The three-head capper applies
plastic snap-on or press-on caps with a 127 mm cap size. The combined
filling and capping arrangement reduces intermediate handling between
dosing and closure application, helping maintain an efficient workflow
for PET, PP and HDPE container packaging.Installation Requirements &
Site PreparationInstallation planning should allow for the machine
dimensions, operator access, format-change activities and connection
to infeed and discharge conveyors. The site must provide a 3 x 400 V
AC + PE + N electrical supply at 60 Hz and compressed air at 6 bar.
Adequate utility routing and a stable installation area are required
to support reliable operation of the filling monoblock.Safety
Standards & Compliance CertificationThis food-grade filling and
packaging machine is designed for hygienic industrial filling
applications. The available manuals and P&ID documentation support
safe commissioning and integration into a production line. Operators
should follow the documented operating procedures and site safety
practices during installation, format changes, cleaning and routine
service activities.
