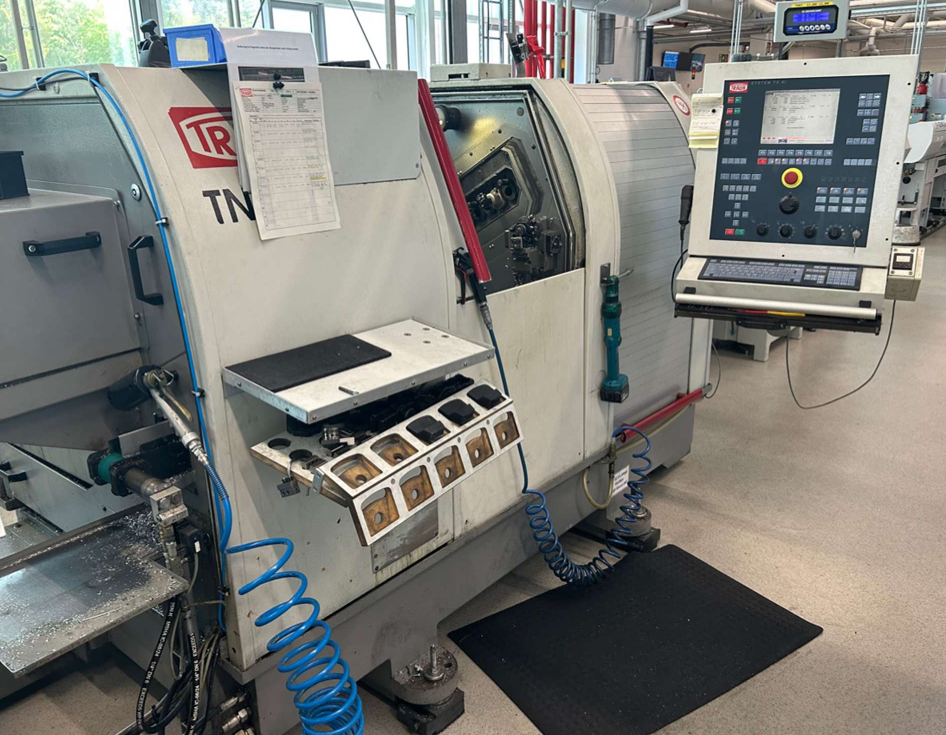

Traub TNK 36 DREHBANK

Manufacturer: Traub

Model: TNK 36

Year of Manufacture: 2003

Operating Hours: approx. 124,705 h (as of May 2026)

Total Connected Power: 33 kW

Voltage: 400 V / 50 Hz

Condition: No known defects. Available for live demonstration.

CNC Control

- Control: TX8i (64-bit)
- Screen: 10.4 inch flat panel display
- Interface: V24 RS232 in control cabinet
- MDE Interface: Machine running / piece counter
- Tool monitoring included
- Thread cutting without compensation chuck
- Programming: At machine control or via WinFlex IPS software on PC

Main Spindle

- Spindle Bar Capacity: 36 mm
- Max. Speed: 6,300 rpm
- Drive Power: AC 6.7 / 10.7 kW
- C-axis included
- Hainbuch collet chuck system (manual change device included)

Counter Spindle

- Motor spindle with C-axis
- Counter-clamping pressure device
- Workpiece ejector
- Hainbuch Axfix collet chuck
- Upper tool carrier with driven tools and electronic gearbox
- X3 cross axis for front attachment
- 5-position front attachment with driven tools
- Parting-side machining station with driven tools

Workpiece Handling

- Workpiece gripper included
- Gripper jaws: D5-8, D8-20, D20-36

Coolant System

- Tank: 230 litres / 7 bar / 50 l/min
- Internal coolant supply: 30 bar
- High-pressure coolant: 120 bar at front and rear machining station
- Knoll VRF 150/750 vacuum rotation filter (suitable for aluminium, plastic, brass and steel)
- Wash gun included

Additional Equipment

- Hinged chip conveyor, discharge height 950 mm
- Bar loader preparation (guide tube D25, D36)
- Follow-up workpiece stop (shank 16x16)
- Brankamp CMS 100 collision monitoring on main and counter spindle
- Basic set of fixed and driven tool holders included

FMB Bar Feeder (Included)

- Brand: FMB
- Model: Turbo 5-42 XT / 3200 C
- Machine No.: 33-170 215
- Year of Manufacture: 2003
- Bar capacity: up to D36 mm diameter, up to 3 m length
- Designed for unmanned automatic operation
