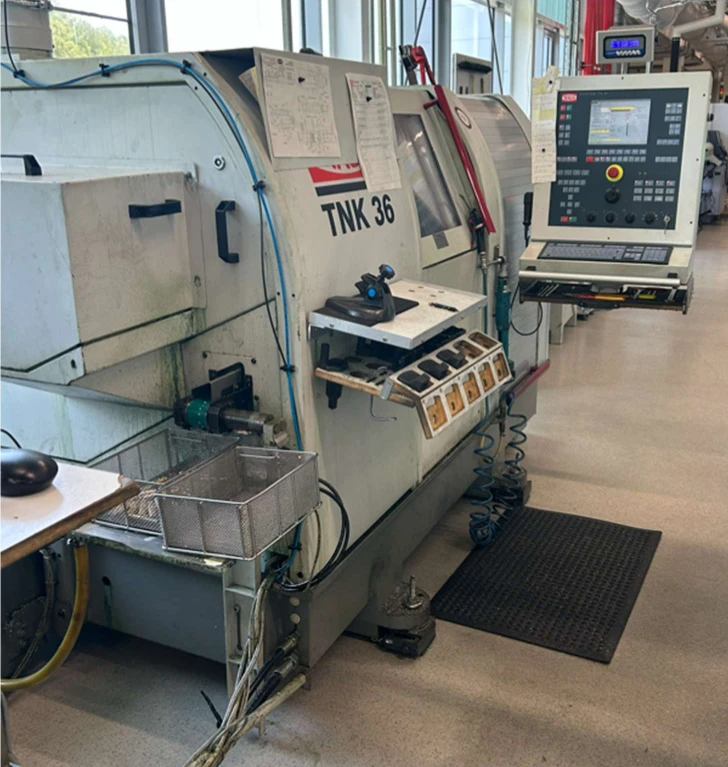

Traub TNK 36 Drehbank

Manufacturer: Traub

Year of Manufacture: 2002, factory overhaul completed 2018

Model: TNK 36

Type of Machine: CNC automatic lathe

Operating Hours: approximately 147,007 hours, as of June 2026

CONTROL SYSTEM

- Control: TX8i (64 bit), 14 inch flat screen
- Additional V24 RS232 interface in the control cabinet
- MDE interface in control cabinet, machine running and piece counter
- Thread cutting without compensating chuck
- Polyform function for C-axis
- Tool monitoring

MAIN SPINDLE

- Spindle bore: 36 mm
- Maximum speed: 6,300 rpm
- Drive power: AC 6.7 / 10.7 kW
- C-axis
- Change parts: Hainbuch
- Mounting aid base body
- Manual Hainbuch change device

COUNTER SPINDLE

- Counter spindle as motor spindle
- Spindle bore: 32 mm
- Maximum speed: 6,300 rpm
- Travel Z4: 250 mm
- Rapid traverse Z4: 30 m/min
- C-axis
- Device for counter clamping pressure
- Workpiece ejector device
- Increased feed force
- Axial fixed chuck: Hainbuch

UPPER TOOL CARRIER

- Travel: X2 = 50 mm, Y2 = +/- 20 mm, Z2 = 100 mm
- Rapid traverse: X2 = 15 m/min, Y2 = 15 m/min, Z2 = 15 m/min
- Driven tools: 12 pieces, via total drive
- Maximum speed: 6,000 rpm
- Electronic gearbox

FRONT ATTACHMENT, 5-FOLD

- X3 cross axis for front attachment
- Travel: X3 = 370 mm, Z3 = 250 mm
- Rapid traverse: X3 = 30 to 60 m/min, Z3 = 30 m/min
- Driven tools: 5 pieces
- Tool holder diameter: 40 mm
- Maximum speed: 6,000 rpm
- Increased feed force

REAR ATTACHMENT

- Travel: X4 = 73 mm, Y4 = +/- 50 mm
- Rapid traverse: X4 = 15 m/min, Y4 = 15 m/min
- Driven tools: 5 pieces
- Tool holder diameter: 40 mm
- Maximum speed: 6,000 rpm

WORKPIECE REMOVAL DEVICE

- Conveyor belt to the left
- Pneumatic workpiece gripper
- Gripper jaws: D5-8, D8-20, D20-36
- Workpiece range: length maximum 200 mm, diameter maximum 32 mm

COOLANT LUBRICATION SYSTEM

- Compact belt filter: RESY
- Cooling unit
- Tank capacity: approximately 360 liters, 7 bar, 50 liters per minute
- Internal coolant supply: 30 bar
- Rinse gun

OTHER SPECIFICATIONS

- Machine and control cabinet color: RAL 7037, dust grey
- Covers and bar loader color: RAL 7035, light grey
- Connection load: 22 kW

ADDITIONAL EQUIPMENT INCLUDED

- Bar loading magazine: FMB turbo 5-42 XT / 3200 C
- Bar loading magazine manufacturer: FMB Maschinenbau GmbH
- Bar loading magazine year of manufacture: 2002
- Bar loading magazine machine number: 52-111 342
- The machine is supplied with a basic set of fixed and driven tool holders
