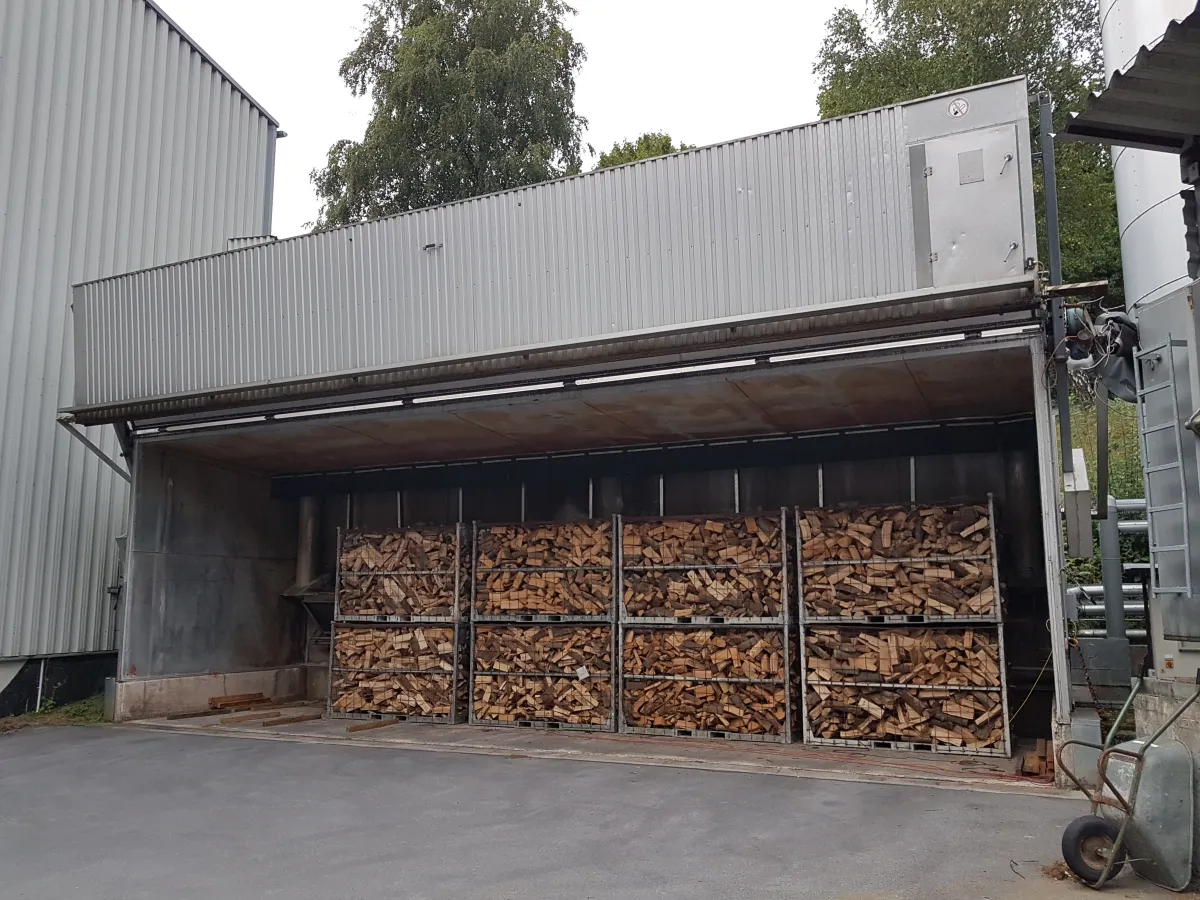

Trockenkammer Lauber /Muhlbock OLSF-2x1,20-3x1,20-13,00 Holztrocknungsofen

Manufacturer: Trockenkammer Lauber /Mühlböck

Model: OLSF-2x1,20-3x1,20-13,00

Year of Manufacture: 2004

Type of Machine : Wood Drying System

TECHNICAL DATA PER UNIT

HOT WATER HEATING

- Heating capacity: 283,800 kcal/h = 330 kW
- Flow temperature: 95 °C
- Water volume: 11 m³/h
- Pressure loss: 3 mWS = 0.3 bar
- Connections (supply/return): DN 50 / DN 50, PN10

SPRAY SYSTEM

- Water consumption: 68 l/h
- Temperature: T = +4 °C
- Pressure: p = 3.0 bar
- Connection: R 1/2
- Spray nozzles: 5 pcs

FANS

- Quantity: 10 pcs
- Power per fan: 1.1 kW
- Voltage: 400 V

STACKING DIMENSIONS

- Length (L): 2 × 6.0 m + 1.00 m
- Width (W): 2 × 1.2 m + 1 × 0.2 m
- Height (H): 3 × 1.2 m + 3 × 0.1 m

GROSS STACKING VOLUME

- 103.7 m³

TECHNICAL DATA PER CHAMBER

HOT WATER HEATING

- Heating capacity: 410 kW
- Flow temperature: 95.0 °C
- Water flow rate: 24 m³/h
- Pressure loss: 3.0 mWS = 0.3 bar
- Flow connection: DN 65, PN 10
- Return connection: DN 65, PN 10

SPRAY SYSTEM

- Water temperature: T > +4 °C
- Operating pressure: p > 6.0 bar
- Water consumption: 29 l/h
- Connection: R 1/2

FANS

- Quantity: 7 units
- Power per fan: 3.0 kW
- Electrical supply: 400 V / 50 Hz
