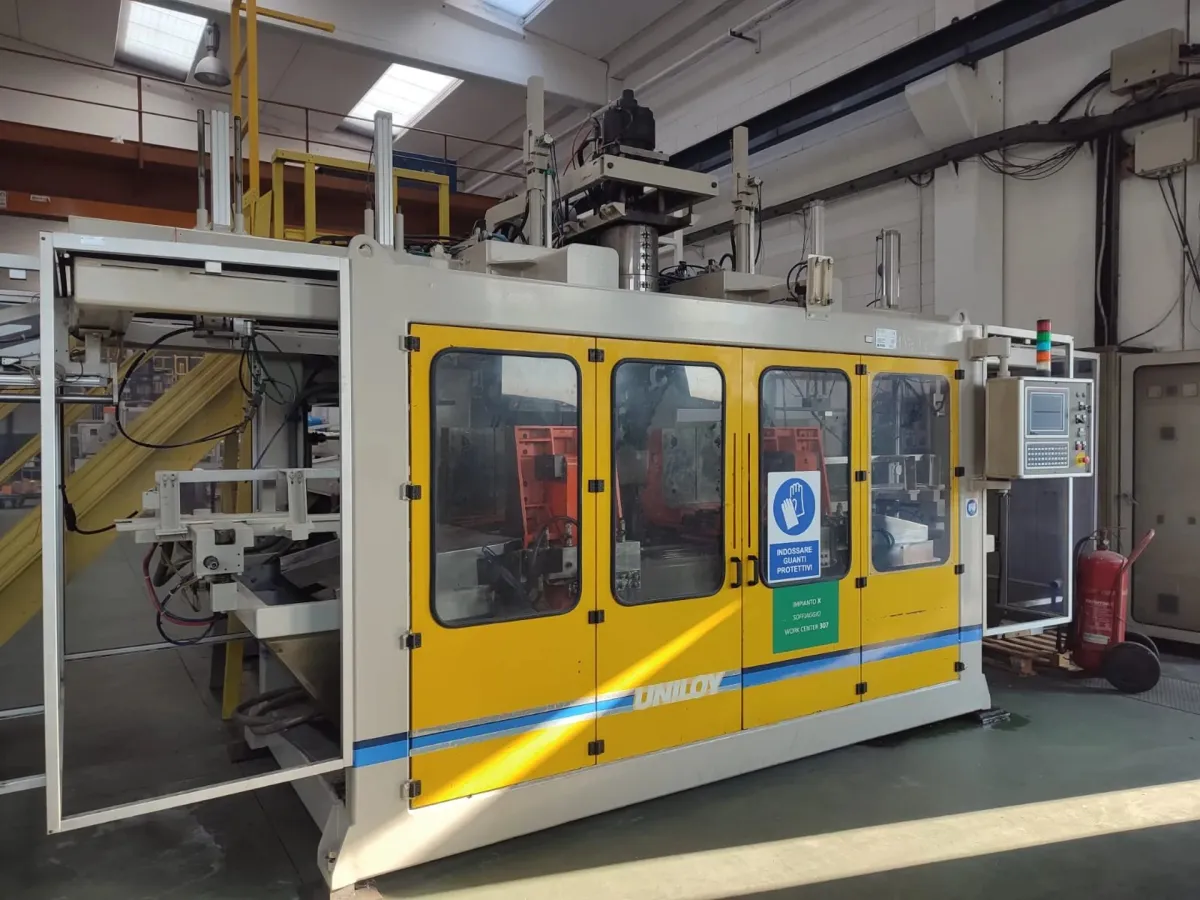

UNILOY MILACRON HMS 10/D

Used HDPE Extrusion Blow Molding Machine for 10 L – 300 bph – Overview Second-hand Uniloy Milacron HSM10/D extrusion blow molding machine designed for producing up to 10 L HDPE containers. With a single-parison head and robust clamp, this EBM unit is ideal for industrial packaging and beverage production auxiliaries (e.g., water canisters, edible oils) and can be integrated within a used bottling line. Documentation and manuals are available. Reference number: SO126. Technical Specifications & Performance Data Main data Make/Model: Uniloy Milacron HSM10/D Year: 2000 Technology: Extrusion Blow Molding (EBM), single parison Material: HDPE Number of cavities: 1 Max container volume: 10 L Indicative output: up to about 300 bph on 10 L (application-dependent) Manuals: included Ref. no.: SO126 Extruder Screw diameter: 100 mm; L/D 24 HDPE screw speed: 0–70 rpm Plasticizing capacity (HDPE): approx. 300 kg/h Main extruder motor: 89 kW Heating zones: 6; barrel heating power: 31.4 kW Motor cooling power: 0.58 kW; barrel cooling power: 1 kW Parison head Type: PE 1/200, single parison Max die diameter: 200 mm Head heating power: 14.2 kW Parison thickness control: hydraulic (wall-thickness programming) Clamp & blow unit Clamp force: 200 kN Max mould size: 650 × 500 mm (H) Mould thickness: 2 × 150 mm Mould opening stroke: 300 mm Horizontal carriage stroke: 660 mm Blow pin stroke: 240 ± 5 mm Blow pin thrust at 50 bar: 320 kg Electrical Installed power: 156 kW (average consumption ~104 kW) Supply: 400 V, 50 Hz, 318 A, 3 + N Hydraulic system Reservoir capacity: 400 l Pump flow (1470 rpm): 123 l/min Max pressure (main circuit): 190 bar Main hydraulic motor: 37 kW; oil cooling motor: 1.5 kW Pneumatics Operating pressure (general): 6–8 bar; air use: 2000–2500 Nl/min Post-cooling pressure: 6–8 bar; air use: 1000–1500 Nl/min Cooling water Mould circuit: 8–12 °C; flow 15 m³/h Extruder & hydraulic oil: 10–24 °C; flow 4 m³/h Dimensions & weights Approx. machine size (L × W × H): 7600 × 7700 × 3900 mm Blow unit weight: 7600 kg; Extrusion group weight: 6400 kg Noise level at operator: < 85 dB(A) Advanced Automation & Control Systems Hydraulic wall-thickness programming for precise parison control, improving weight distribution and top-load performance on 10 L containers. Dedicated Uniloy command and control software (version code available in manuals) with operator interface for setpoint management and diagnostics. Integrated temperature control across six extruder zones and heated head for stable processing at up to 300 °C transformation temperature. Interlocked guarding and emergency stops for safe operation. Production Line Integration Capabilities This second-hand extrusion blow molder is integration-ready for downstream equipment typical of a used bottling line and industrial packaging systems: Conveyors, deflashing/trimming, leak testers, vision/weight control, and palletizing cells. Standard utilities: 400 V / 50 Hz electrical, 6–8 bar compressed air, closed-loop cooling water at specified flows. Suitable for beverage production auxiliaries such as water and edible-oil jerrycans, as well as chemicals and household products. Machine Condition & Maintenance History Status: second-hand unit with original documentation; manuals are available for commissioning and maintenance. Chiller: not supplied (water circuits required as per specs). Air compressor: not included unless otherwise stated. Inspection and test under your product and tooling are recommended to validate cycle time and wall-thickness distribution. Operational Performance & Versatility Single-parison design supports consistent production of 5–10 L containers with changeable dies up to Ø200 mm. HDPE processing at high plasticizing capacity (~300 kg/h) enables competitive cycle times around 300 bph on 10 L, subject to mould design, cooling, and part geometry. Stable temperature control and hydraulic parison programming deliver repeatable quality for demanding industrial packaging requirements. Installation Requirements & Site Preparation Footprint and access: allocate at least 7.6 × 7.7 m plus service clearance; height 3.9 m minimum. Electrical: 400 V, 50 Hz, 3+N, 318 A; installed power 156 kW (typical average ~104 kW). Compressed air: 6–8 bar; 2000–2500 Nl/min for process plus 1000–1500 Nl/min for post-cooling. Cooling water: mould circuit 8–12 °C at 15 m³/h; extruder/oil circuit 10–24 °C at 4 m³/h. Provide adequate filtration and water treatment. Floor loading: allow for approx. 14 t total machine mass across extrusion and blow groups. Safety Standards & Compliance Certification Safety features include interlocked guards, emergency stop circuits, and acoustic emissions below 85 dB(A) at the operator position. Built to European safety practices of its manufacturing period. Compliance with current local regulations should be verified during installation. Comprehensive manuals support risk assessment, CE validation updates, and operator training.
