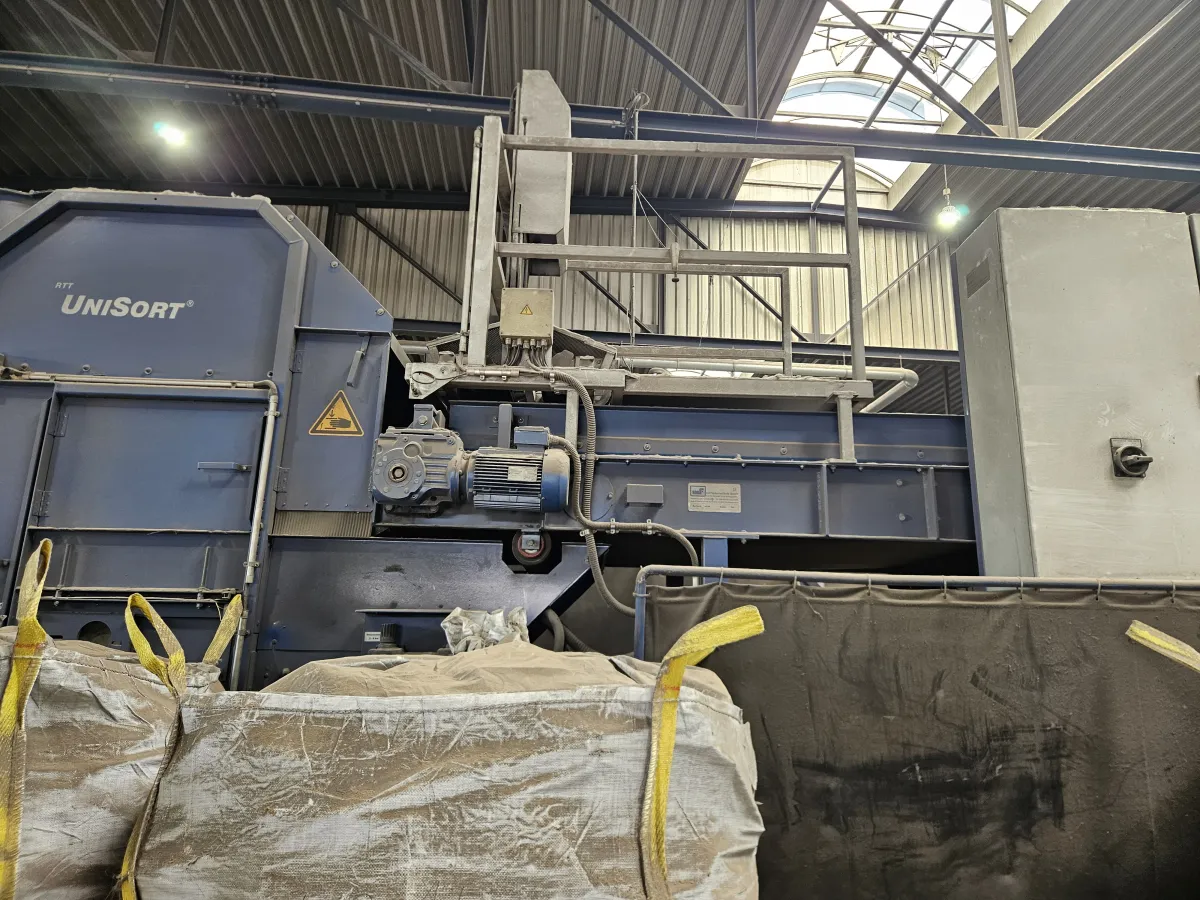

UniSort PX1000F HELIOS NIR Sorter

It utilizes Near-Infrared (NIR) sensors, used in automated recycling and waste management facilities to identify and sort plastics.

Note the camera needs to be replaced. The machine cant run without it.

1. General Specifications

- Minimum Grain/Particle Size: 15 mm
- Maximum Grain/Particle Size: 220 mm
- Weight Distribution of Sorted Material:
- 35 g per piece (making up 25% of the volume)
- 50 g per piece (making up 75% of the volume)
- Total Machine Weight: 1,650 kg

2. Electrical & Power Requirements

- Electrical Connection: 380–440 VAC, 3-Phase, 50/60 Hz
- Connected Load / Power Consumption: 10 kW

3. Optical & Scanning System (Light Bridge)

- Resolution: 240 Pixels
- Scanning Width: 1,000 mm (1 meter)
- Clear Height above Belt: Approx. 250 mm

4. Pneumatic Ejection System (Nozzle Bar)

- Valves with Nozzles: 62
- Nozzle Pitch / Distance: 15.5 mm
- Maximum Pressure: 10 bar
- Operating Pressure: Approx. 8 bar
- Air Consumption: Approx. 2,000 Nl/min (Normal Liters per minute)

5. NIR Sensor Capabilities

- Detection Type: NIR (Near-Infrared)
- Recognizable Plastic Types: Standard database includes PE, PET, PP, PS, PPK (paper/cardboard).
- Note: The system is also capable of learning additional material types.
