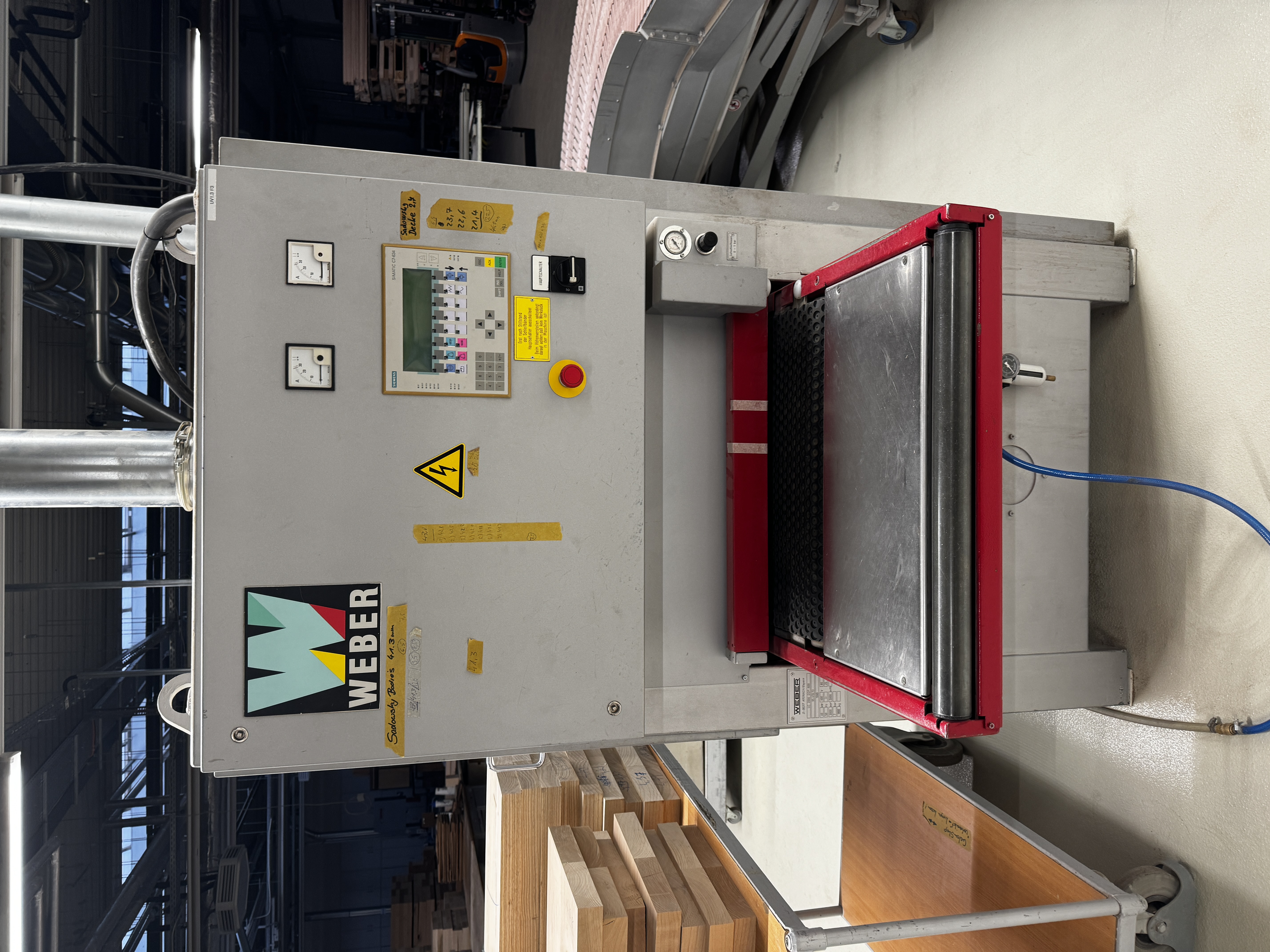

1999 WEBER LC 2000 DDP-600
Working width max. 600 mm
Workpiece thickness max. 150 mm
automatic measurement of the workpiece thickness
Feed continuously adjustable 2 - 12 m/min.
Aggregate equipment:
1) Contact roller unit with smooth steel roller
Drive motor 15 KW, pole-changing for
2 grinding speeds
2) Rubber contact roller assembly with corrugated rubber roller
Hardness 60 Shore drive motor 15 KW, pole-changing, this one
The motor also drives the subsequent sanding shoe unit
3) Sanding shoe unit pneumatically controlled

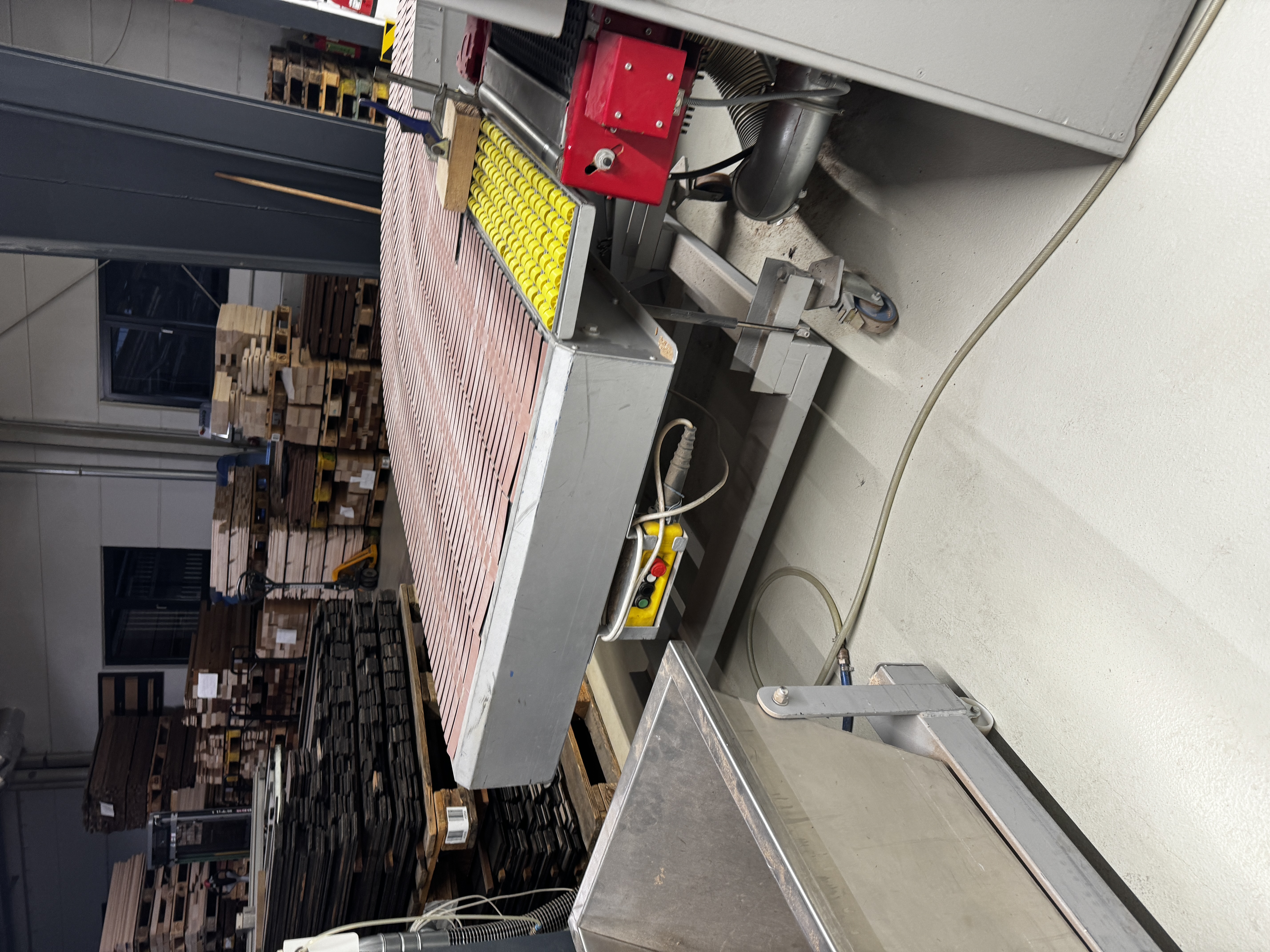

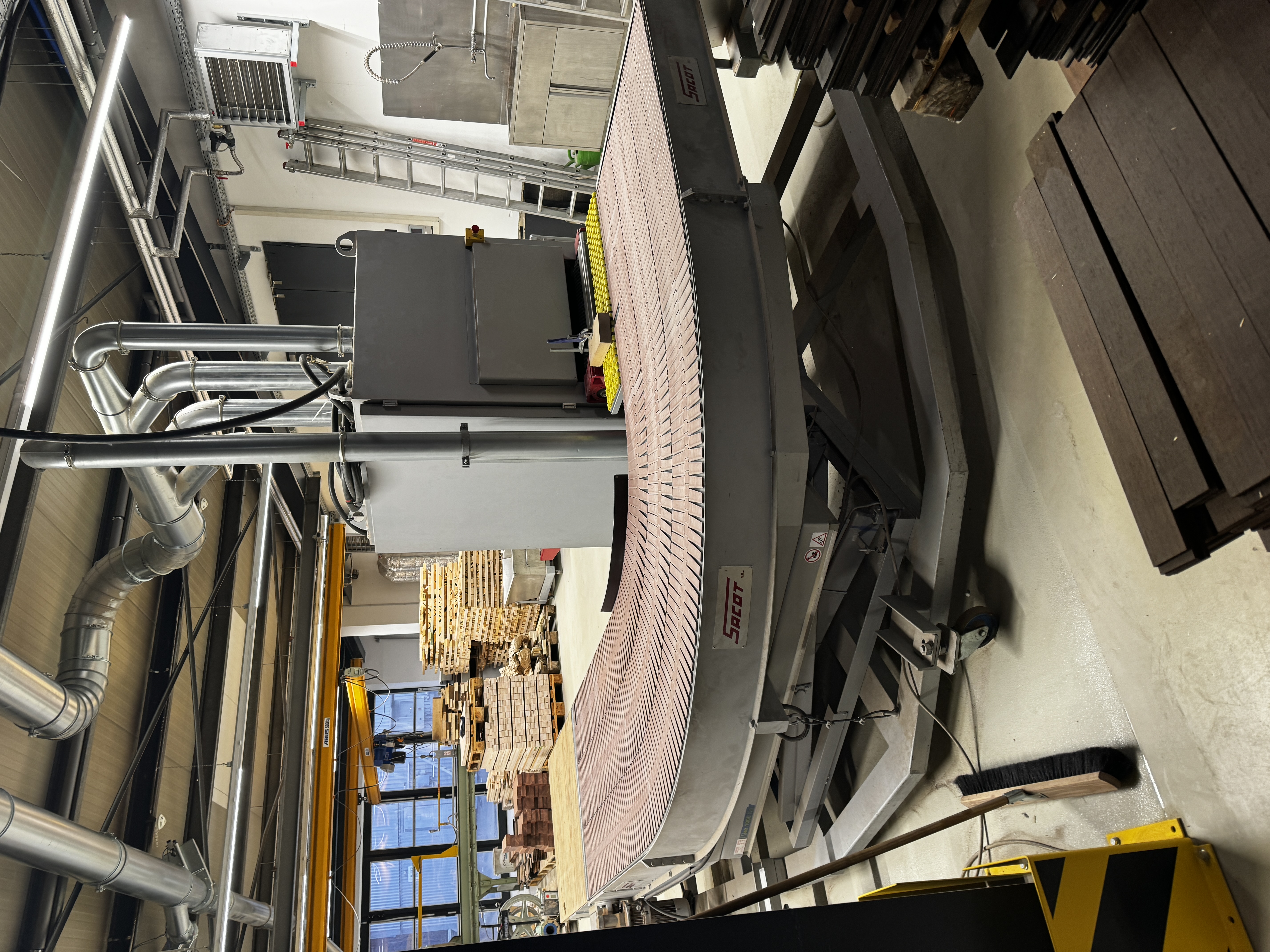

Machine complete with small parts return, designed as a transport
curve, as a plate conveyor transport
Machine weight approx. 1,800 kg
Connection values:
400 V, 50 Hz, 3 Ph.
