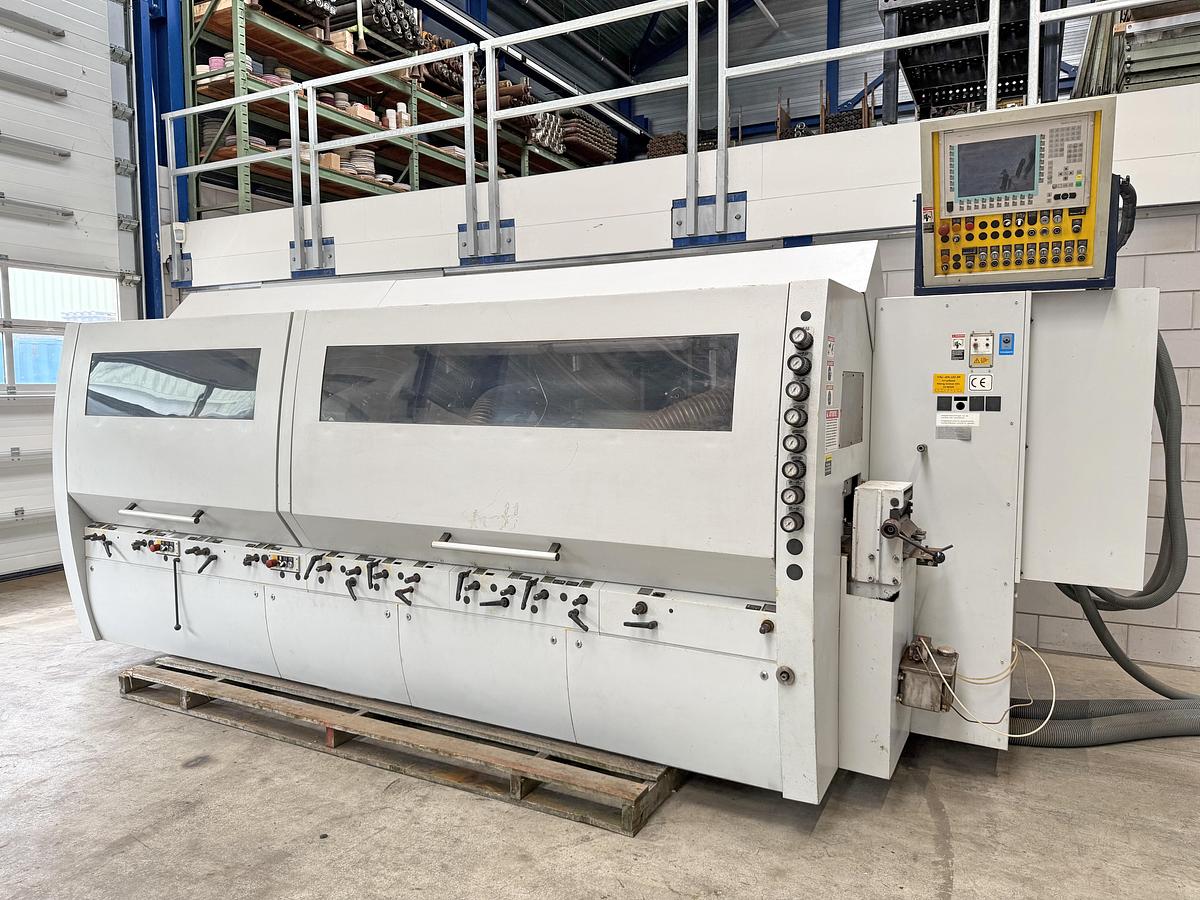

WEINIG Unimat 23EL

WEINIG moulder Unimat 23EL, Manufacture year 2002, Machine specifications:, - Planing width 20 - 180 mm, - Planing height 8 - 120 mm, - Electric feeding system, motor 15 kW, - Feed speed frequency drive 6 - 40 m/min, Spindle lay-out:, 1. Horizontal spindle bottom, motor 11 kW, 2. Vertical spindle right, motor 11 kW, 3. Vertical spindle left, motor 15 kW, 4. Vertical spindle right, motor 7.5 kW, 5. Vertical spindle left, motor 15 kW, 6. Horizontal spindle top, motor 22 kW, 7. Horizontal spindle bottom, motor 7.5 kW, 8. Horizontal spindle top, motor 22 kW, 9. Horizontal spindle bottom, motor 18.5 kW, - Spindle diameter 50 mm, - Spindle 2 - 5 + 8 are 8000 rpm, - Spindle 9 adjustable 4000 – 8000 rpm, - LogoCom controller, - Short infeed table, - Automatic lubrication system, - Driven feeding rollers in table, - Heavy duty cardan feeding, - Separate electricity trunk with separate control panel, - Incl. accessories
