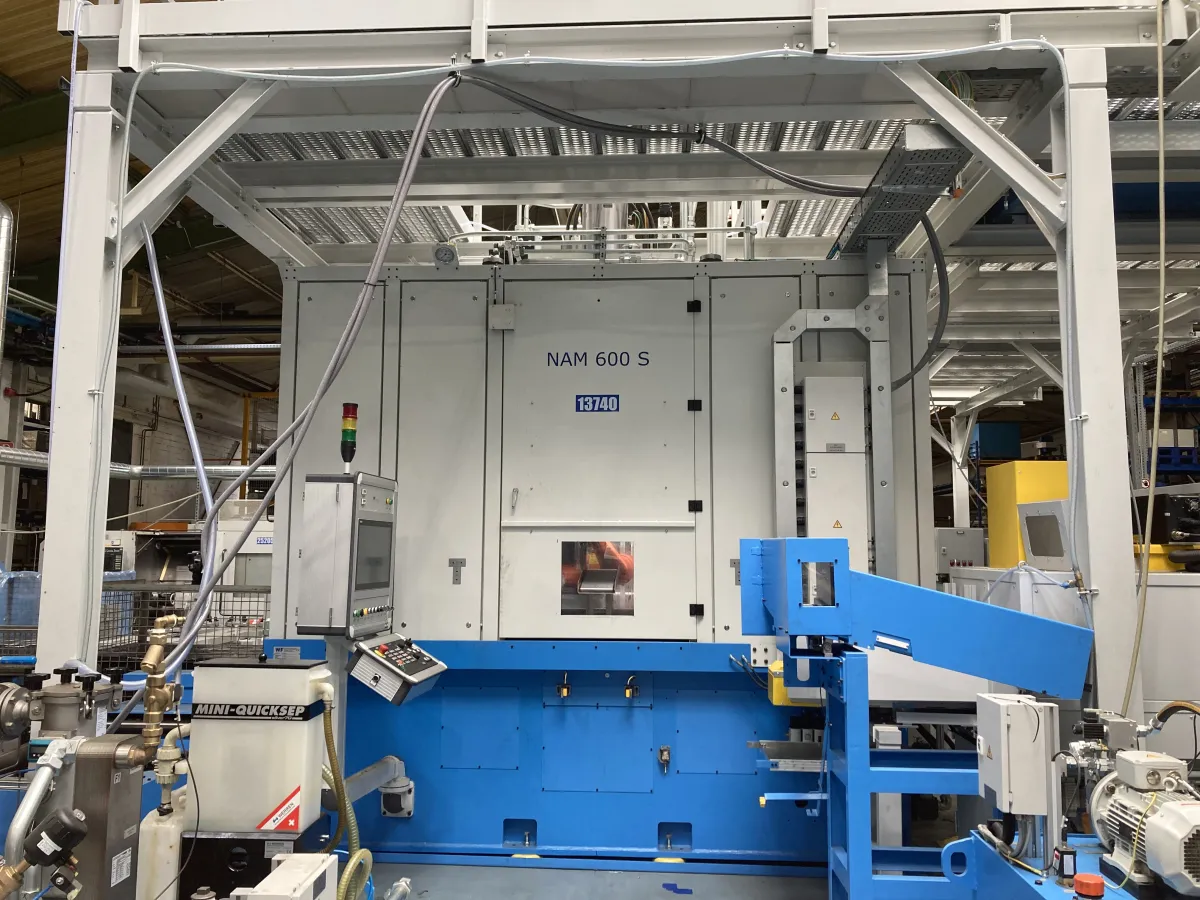

WF NAM 600 S Umformmaschine

2-roll flow-forming line NAM600S

General condition: practically new / already out of service

Scraper device (around the tailstock)

Working stroke max. 500 mm

Scraper force, infinitely variable from 50 - 200 kN

Hydrau I i k / lubrication / cooling system

Drive power Hydraulics approx. 75 kW

Olin content Hydraulic tank approx. 1,500 I

Equipment/Com ponents Hyd raulics Make Parker Hannifin

Drive power oil lubrication approx. 4.4 kW

Olin content Lubricant tank approx. 600 I

Equipment/Com ponents Lubricant system Make Parker Hannifin

Connected load Cooling system approx. 2.2kW

lnhalt Coolant tank approx. 650 I

Powerful coolant supply, adjustable 0 - 200 l/min.

Cooling water requirement hydraulics + lubrication approx. 2.500 /h

Cooling water flow temperature max. 25C min.

Cooling water differential pressure 2bar

Cooling water system jerk max. 5 bar

Compressed air system pressure Max 6 bar

CNC control Make Siemens Sinumerik 840 D SL

Machine weight approx. 15.500 kg

Electrical data

Connected load approx. 205 kVA

Supply voltage 3-400 V, 50 Hz

Fuse protection 3x355A

Painting in WF standard

Main color (machine body) Ultramarine blue (RAL 5002)

Secondary color 1 (claddings) Silk gray (RAL 7044)

Secondary color 2 (moving parts) Zinc yellow (RAL 1018)

Ambient temperature during operation 10c - 40 c

Humidity max. 80
