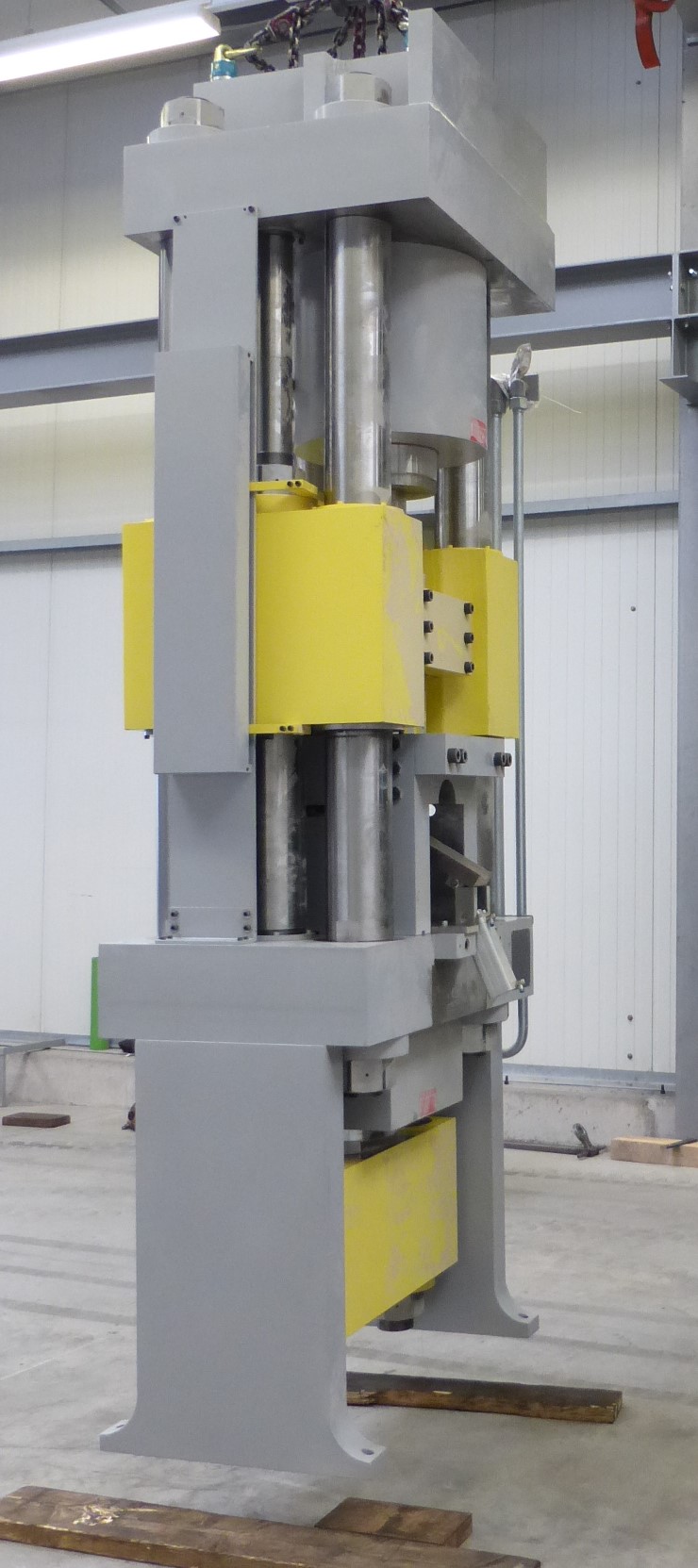

Winter VSP 350 Hydraulische Presse

Manufacturer: Winter

Model: VSP 350

Year of Manufacture: 2014 72015

Type of Machine :Column press

Technical Specifications :

- Plunger force can withstand 3500 kN
- Maintain 50 mm plunger stroke
- Piston force: 2500 kN
- Piston stroke: 100 mm
- Installation height of plunger at the top: 553 mm
- Distance between columns 570 mm
- Table-type pestle surface W*D 392*238 mm
- Table height approx. 1100 mm
- Overall height approx. 3250 mm
- Overall width approx. 1290 mm
- Total depth approx. 860 mm
- Machine weight without oil: approx. 13000 kg
- Oil filling DIN 51524-HLP 46 1150 l
- Maintain working speed of 500 kN at approximately 30 mm/s
- Maintain working speed of 3500 kN at approximately 4 mm/s
- Maintain return stroke speed of approximately 60 mm/s
- Working speed for cutting: 500 kN approx. 30 mm/s
- Working speed for cutting: 2500 kN approx. 5 mm/s
- Return stroke speed: approximately 60 mm/s
- Drive power 2*15 kW
- Total current 35 A
- Operating voltage 400 V, 50 Hz
