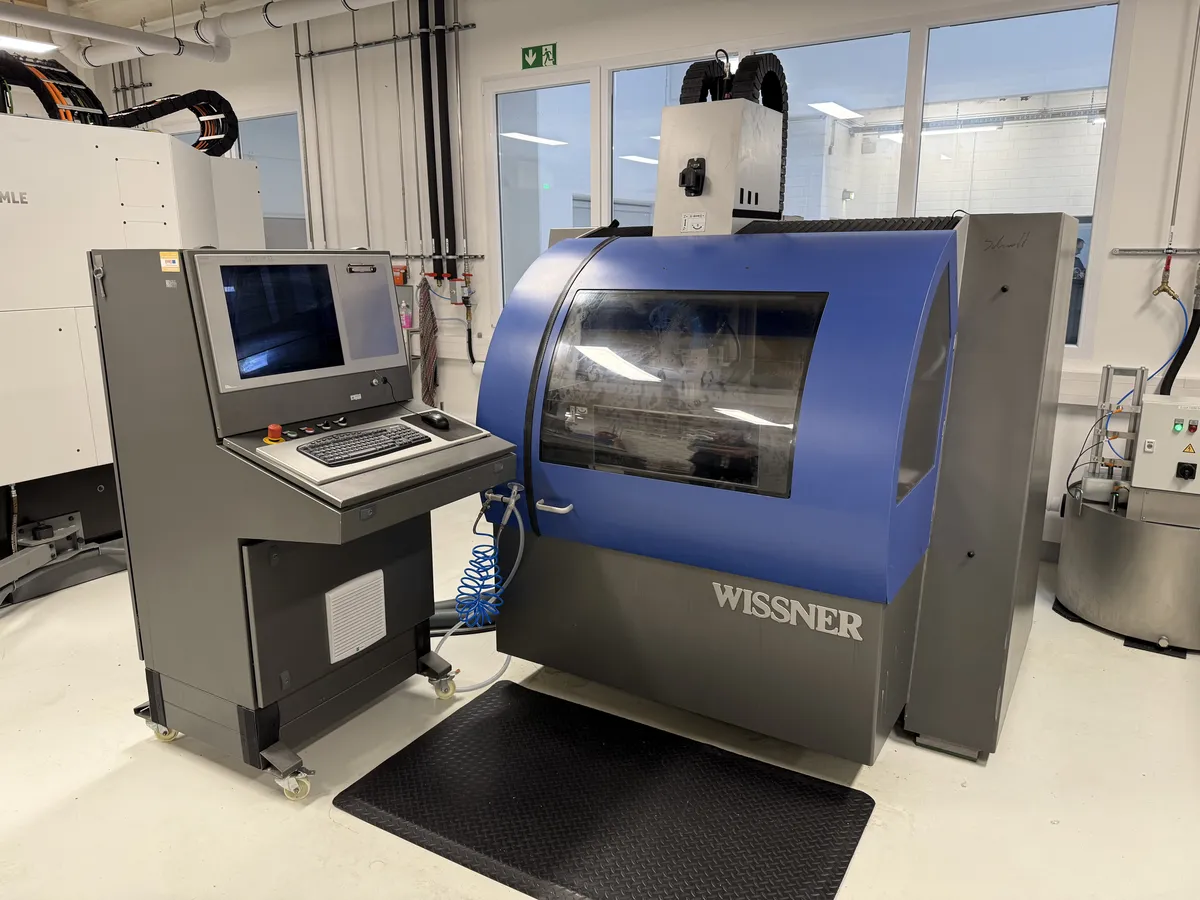

WISSNER GAMMA 605 eco

Manufacturer: Wissner

Model: GAMMA 605 eco

Year of manufacture: 2013

Control: CNC HSC 6000

Machine type: CNC 5-axis high-speed milling machine

Technical Specifications:

- Travel path X/Y/Z: 600mm / 500mm / 350mm
- Max. workpiece weight: 460 kg
- Table dimensions X/Y: 700mm / 600mm
- Tool holder: HSK-F63
- Machine dimensions X/Y/Z: approx. 2500mm / 2950mm / 1850mm
- Weight: approx. 3500 kg per the machine description; the nameplate states a total weight of 3700 kg
- Zero-point clamping system: Schunk NSE Plus 138-V1
- Clamping pins: SPA 40 RF
- Cooling system: Hyfra Chilly 35
- Air blast function: Included
- Tool measuring system: Included
- Operating pressure: 6 bar
- Cone cleaning: max. 2.0 bar
- Blocking air spindle: 0.3-0.5 bar
- Rated voltage: 400 V
- Fuse rating: 63 A
- Frequency: 50 Hz
- Max. permissible tool diameter: 50 mm
- Made in Germany, CE marked
- Documentation: Available
- Inspection: On-site inspection is possible
