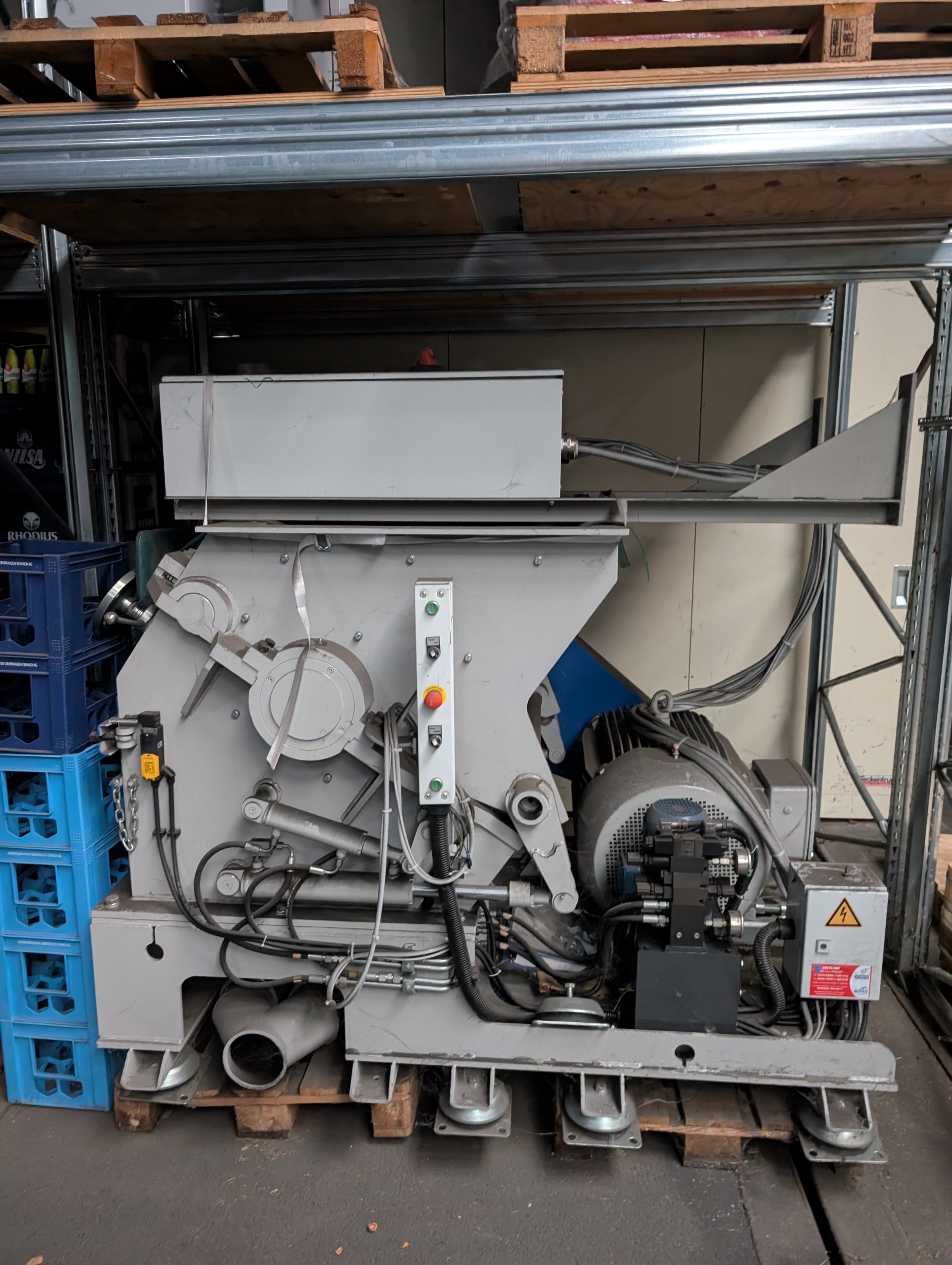

Manufacturer: Zerma
Model: GSE 700/1000
Year of Manufacture: 2021
Inlet dimensions: 720 x 990 mm
Rotor diameter: 700 mm
Working width: 1000 mm
7 x 2 rotor blades
2 stator knives
Sieve insert: 10 mm Ø
Drive 75 kW, 1500 rpm, IP 55, 400 V, 50 Hz, IE3
The machine has not yet been assembled or put into operation and is
therefore in mint condition.
Feed Belt (Bias Belt 1)
- Length (AA): 6000 mm
- Width (GB): 980 mm
- Drive: 1.5 kW
- PVC stud belt with lower belt cover
- Equipped with 2 × emergency stop buttons
Switchgear
- Load-dependent control
- Mounted on a separate frame

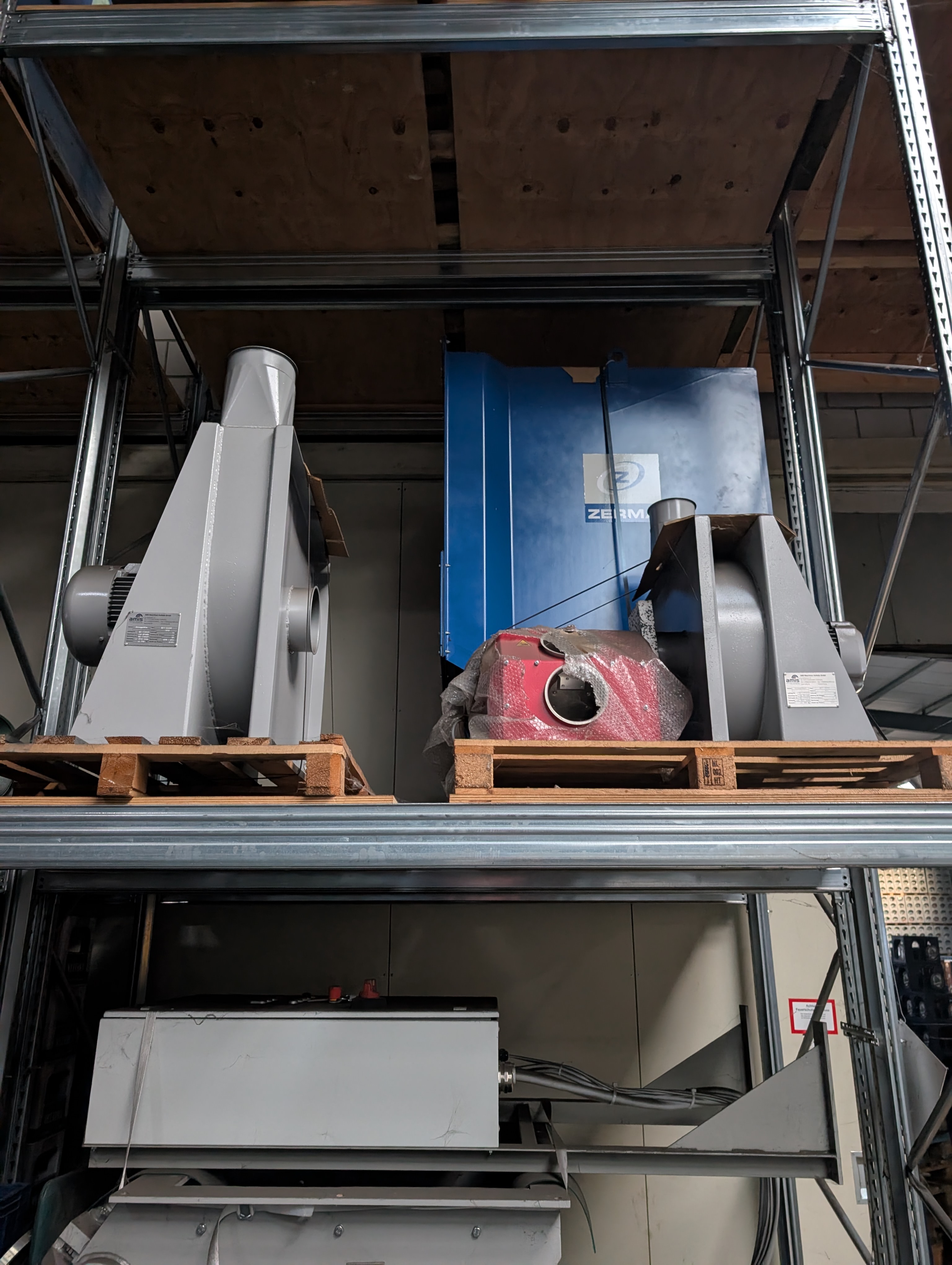

Extraction System – MFT 55/500
- Power: 11 kW
- Pipeline: NW 200 mm Ø
- Rack for bagging into double big bags
- Cyclone: 800 × 2400 mm
- Exhaust box with 12 exhaust hoses
Metal Separator
- NW 150 mm Ø
- Quantity: 1 piece
Fine Material Separator – Type FAS 500
- With MFT 30/300 blower (4 kW)
- Cyclone: NW 500 × 1250 mm
- Exhaust box with 6 exhaust hoses
- Pipeline: NW 150 mm Ø
- Rack for bagging into 1 big bag
