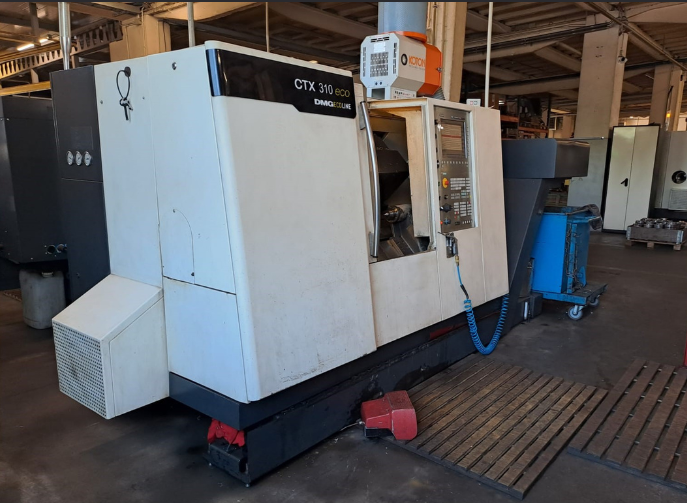

Dreh-Bearbeitungszentrum DMG GILDEMEISTER CTX 310 ECOline

Manufacturer: DMG GILDEMEISTER

Model: CTX 310 ECOline

Year of Manufacture: 2009

Control System

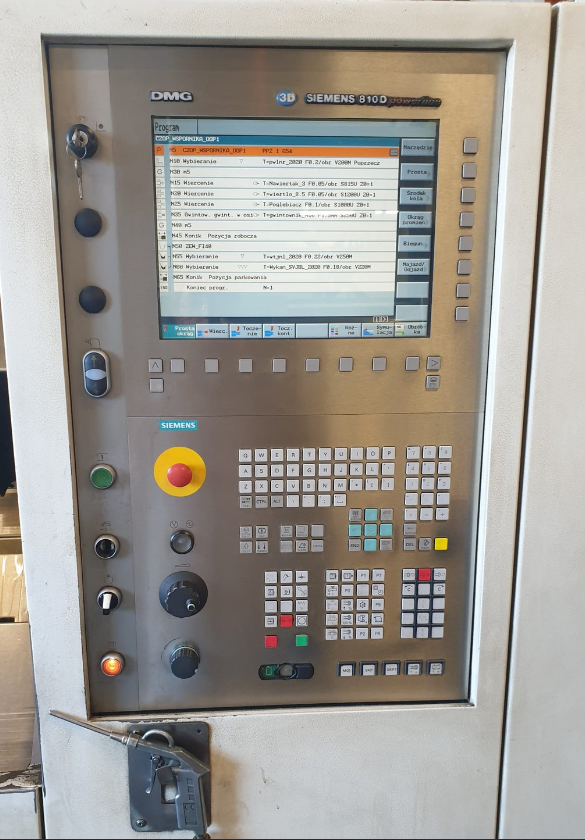

- Siemens Sinumerik 810 D

Application

- Precision machining of workpieces with a maximum diameter of 200 mm.

Features

- 12-station turret
- Integrated chip conveyor
- Workplace lighting
- Foot switch
- Documentation: DTR

Technical Data:

Max. turning diameter: 200 mm

Max. pass-through diameter: 330 mm

Max. pass-through diameter over cross slide: 260 mm

Feed rate in X/Z axis: 160/450 mm

Speed in X and Z: 24 mm/min

Max. spindle speed: 5000 rpm

Spindle bore: 51 mm

Spindle drive power (40%/100% DC): 16.5/11 kW

Max. spindle torque (40%/100% DC): 166.5/112 Nm

Tailstock stroke: 400 mm

Tailstock force: 400 daN

Operating hours (as of 06.03.2025, still in operation): 48,066 h

Installed power: 21 kVA

Power supply: 400 V; 50/60 Hz

Dimensions (L x W x H): approx. 4150 x 1700 x 2250 mm

Machine weight: 3400 kg
