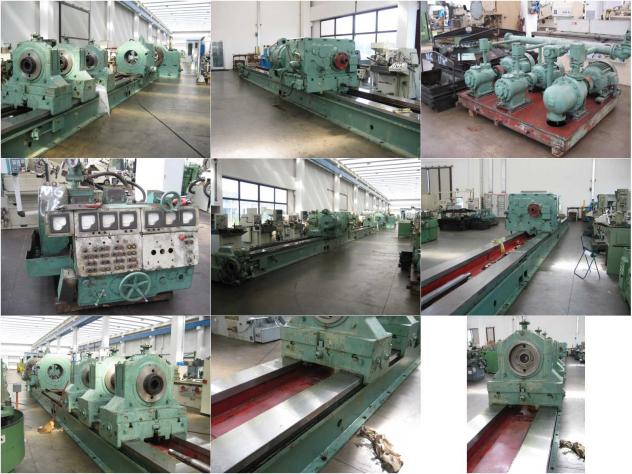

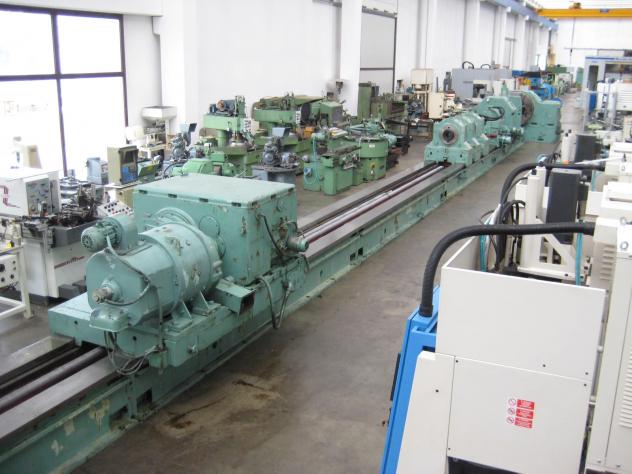

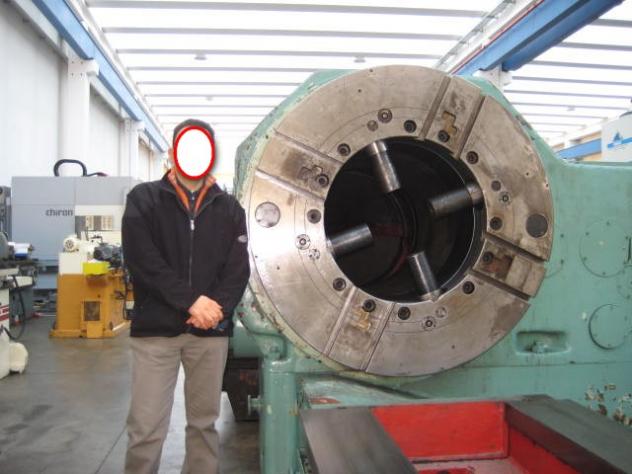

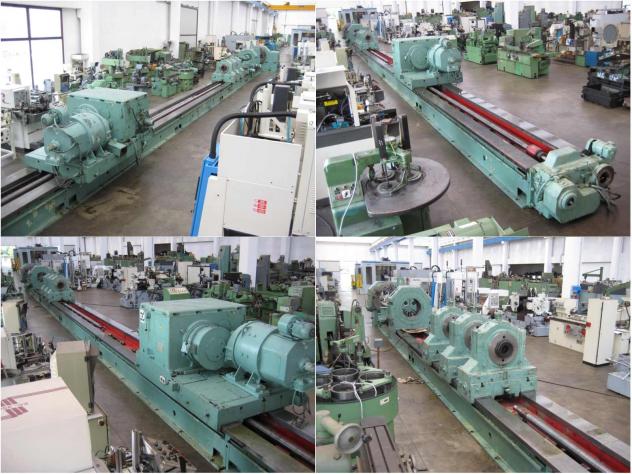

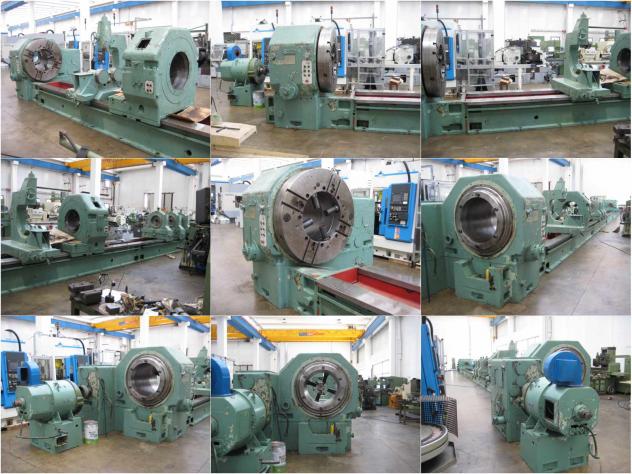

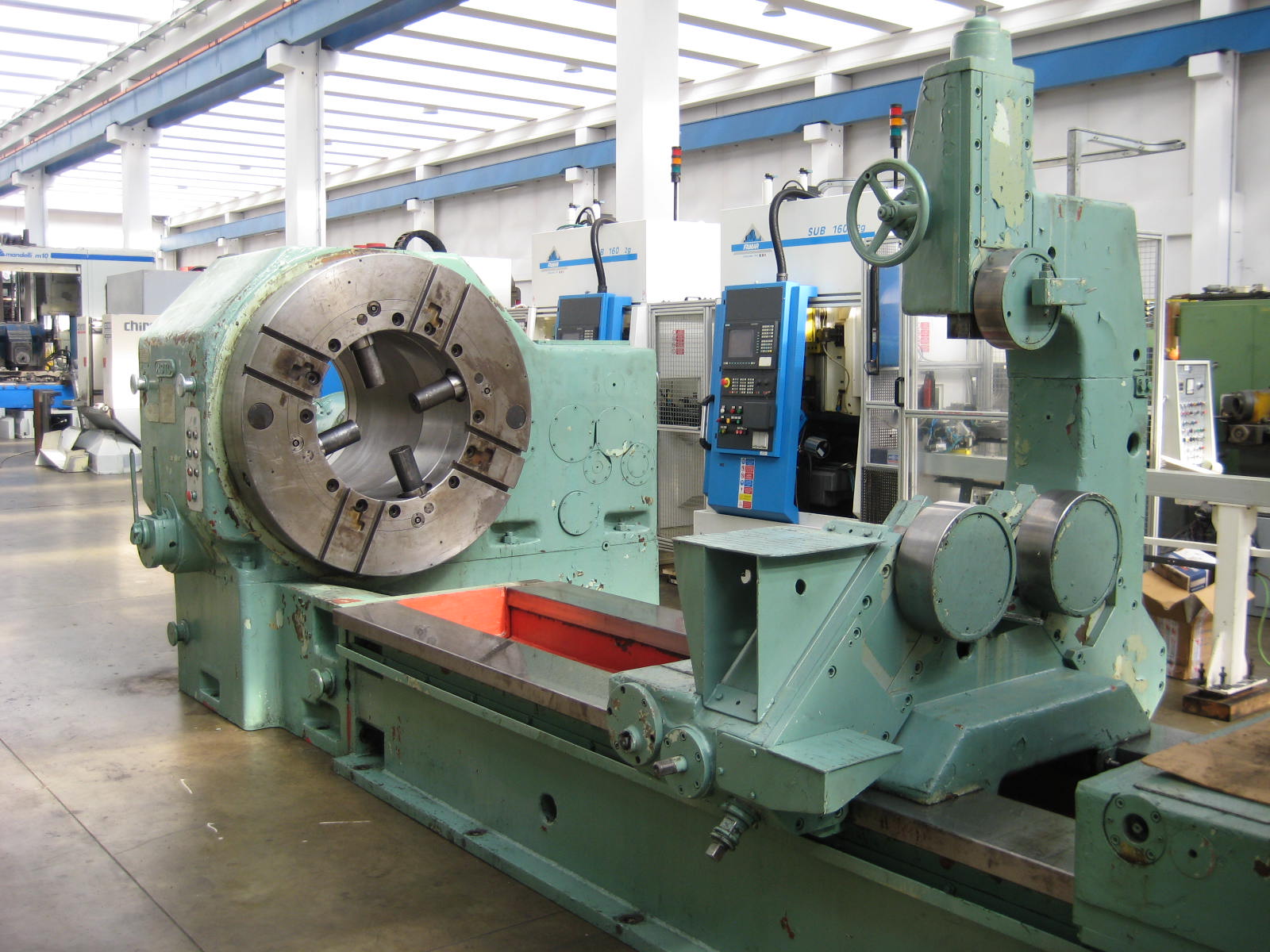

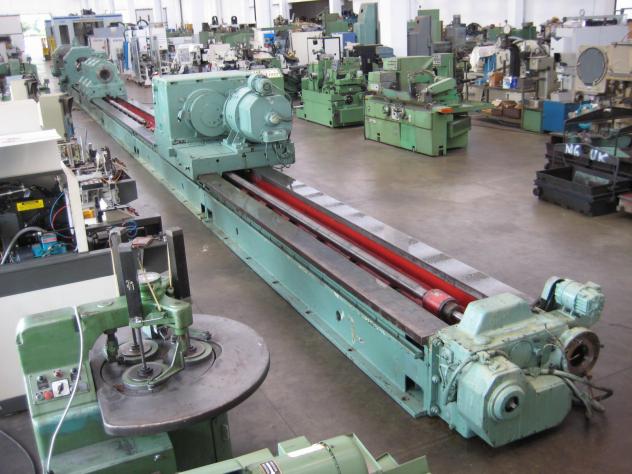

Tieflochbohrmaschinen KRAMATORSK KJ1910

Tieflochbohrmaschine - Heavy duty deep hole boring machine

Kramatorsk (Russia)
KJ 1910
Year of manufacture 1986
Max. boring diameter, mm 600
Max. boring lenght mm 10000 (10 meter)
Max 25 ton

Machine in our warehouse in Northern Italy

Center height over the bed, mm 670
Max. work piece external diameter, mm 1300
Work piece length range on one-sided machining, mm 1000...10000
Work piece diameter range, mm:
- in chuck of faceplate 200...1100
- in open rest 400...900
- in closed rest 200...630
- in round rest 250...550
Max. work piece weight, kg 25000
Spindle speeds range, rpm 2...200
Spindle hole diameter, mm 700
Main motor power, kW 85
Counter rotation motor is 95kW
Machine overall dimensions, mm 25550 x 3000 x 2290
Machine weight, kg 83000

Mimu Machine Tools (Italy) Werkzeugmaschinen

Verkäufer Angebot Nr. resale kramatorskkj1910-1
