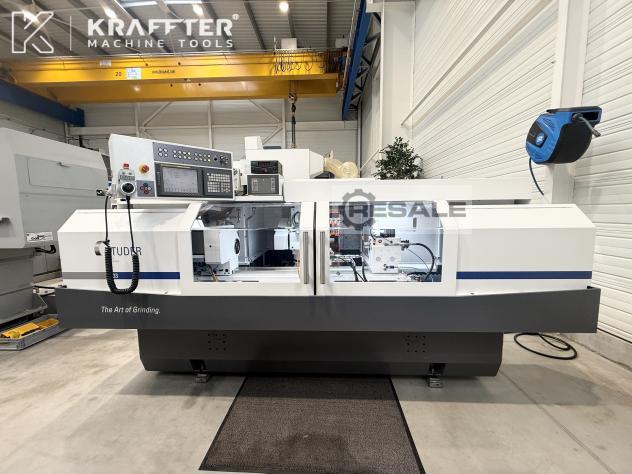

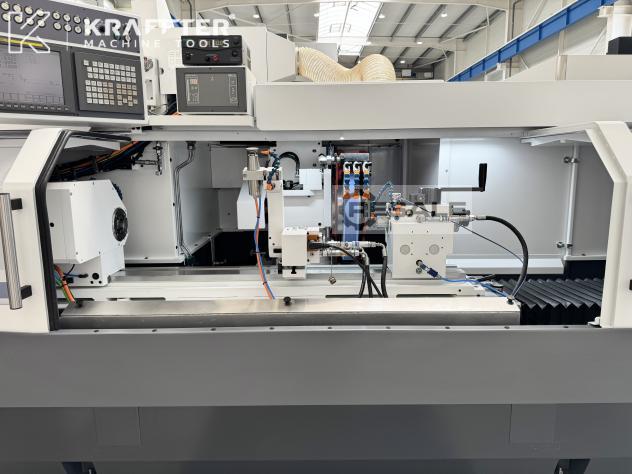

CNC cylindrical grinding machine STUDER S33
TECHNICAL FEATURES:
NC Type: FANUC 21i-TB
Software version installed: StuderGrind
Distance between toes: 1000 [mm]
Peak height: 175
X-axis travel: 285 [mm]
Minimum speed. X-axis stroke: 0.001 [mm/min]
Maximum speed X-axis travel: 5000 [mm/min]
X-axis resolution: 0.0001 [mm]
Z-axis travel: 1150 [mm]
Minimum speed. Z-axis travel: 0.001 [mm/min]
Maximum speed Z-axis stroke: 10000 [mm/min]
Z-axis resolution: 0.0001 [mm]
B-axis angular travel: -15 [°] / +195 [°]
Hirth B-axis indexing accuracy: 1 [°]
Automatic B-axis: Yes

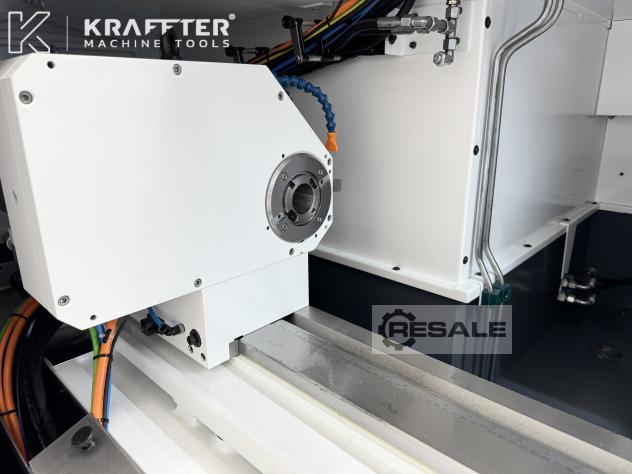

Coin Holder Spindle Nose: MT5
Minimum speed. Coin Holder: 1 [RPM]
Maximum speed Workpiece Spindle: 1500 [RPM]
Maximum weight permissible headstock between points : 120 [Kg]

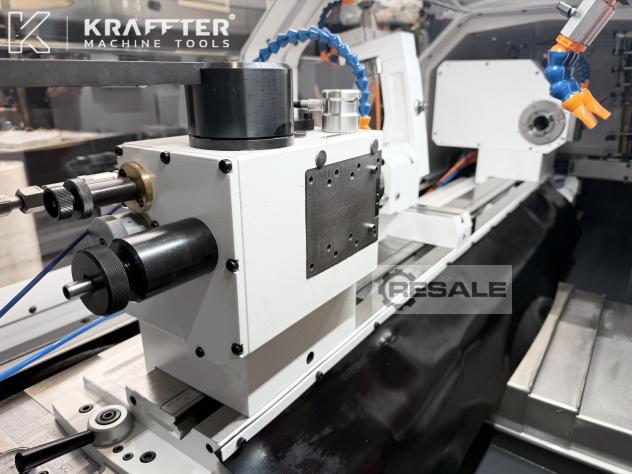

Tailstock Cone: MT3
Tailstock sleeve stroke: 35 [mm]
Diameter of tailstock: 50 [mm]
Tailstock fine adjustment: +/- 40 [mm]
Supply voltage: 400 [V]
Installed power: 20 [kVA]
Weight: 5700 [Kg]
EQUIPMENT INCLUDED:

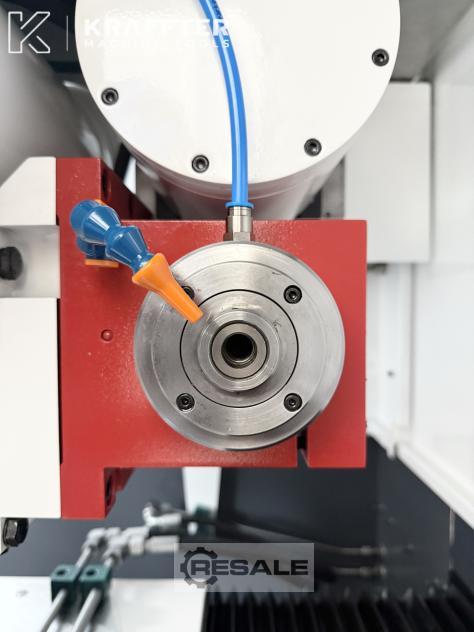

x1 Mechanical Grinding Spindle Inter. Type 102540B - Speed: 40,000
[rpm]
x1 hydraulically foldable dressing device
x1 dressing turbine (wheel) DR. KAISER type C42 DC 058 - speed: 25,000
[rpm] - 0.17 [Kw]
x1 MAAS frequency converter type SPS-9250
x1 Pneumatic tailstock lift
x1 Pneumatic False Table Lift
x1 automatic B-axis - Hirth 1 teeth [°]

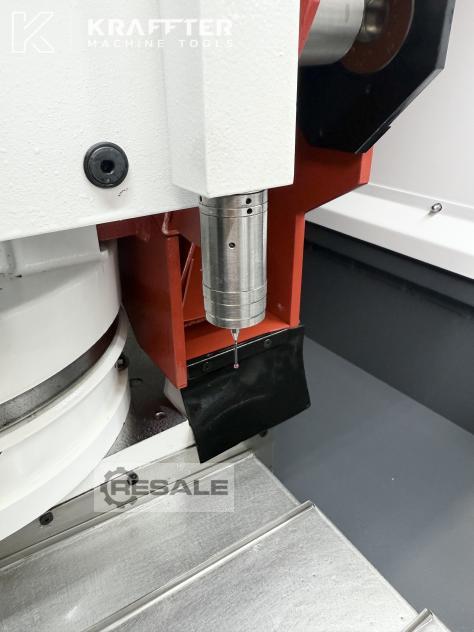

x1 MOVOMATIC C25 workpiece probe
x1 contact control unit DITTEL SENSITRON 2
x1 Semi-Automatic Wheel Balancing Device MPM Type 3.BMT100M

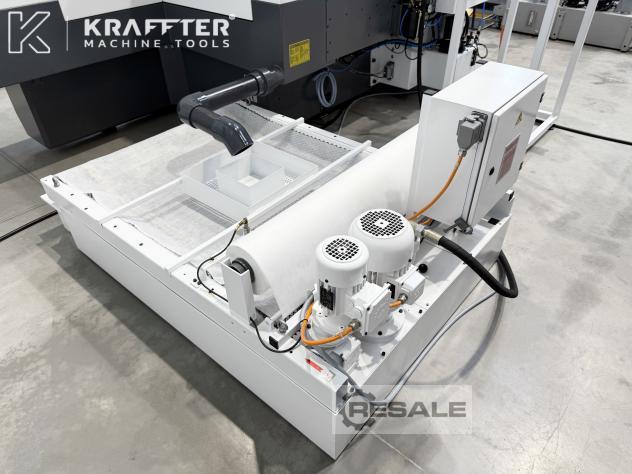

x1 STREULI AG paper filter unit
x1 Oil Mist Suction Unit AFS Air Filter System

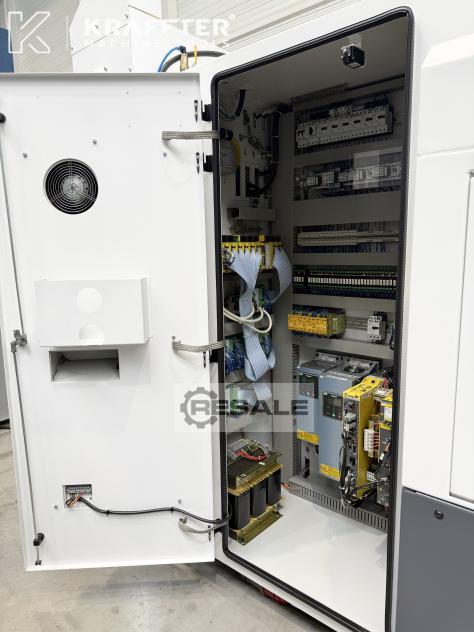

x1 Electric Cabinet Air Conditioner
x1 set of user manuals (French, English and German)
Machine visible under tension for testing at our premises, by
appointment.
Price excl. VAT on request, including truck loading.
Possibility of shipping throughout France as well as
internationally.
More photos and details on request.
Technical description for information purposes only, without
obligation on our part.
Machine similar to brands okamoto, elb, ger, tacchella, karstens,
jones shipman, jung, favretto, blohm, studer to see also surface
grinding machine, lathe, machining center, milling machine
